Description

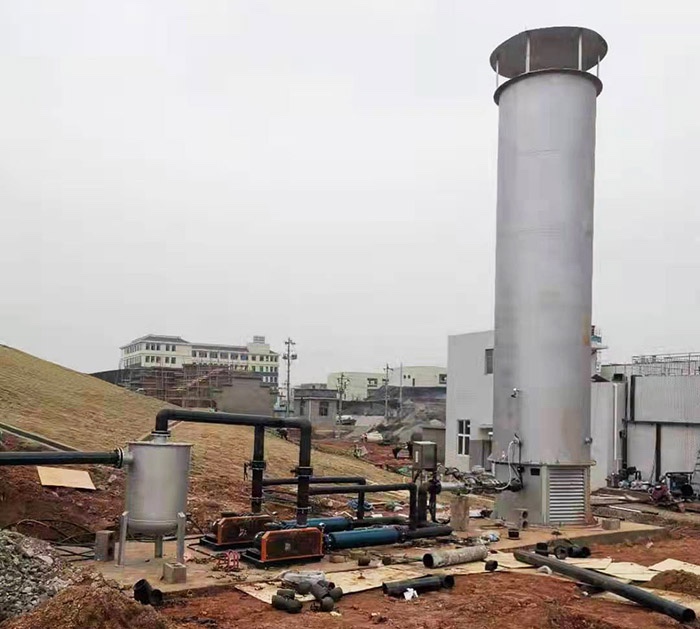

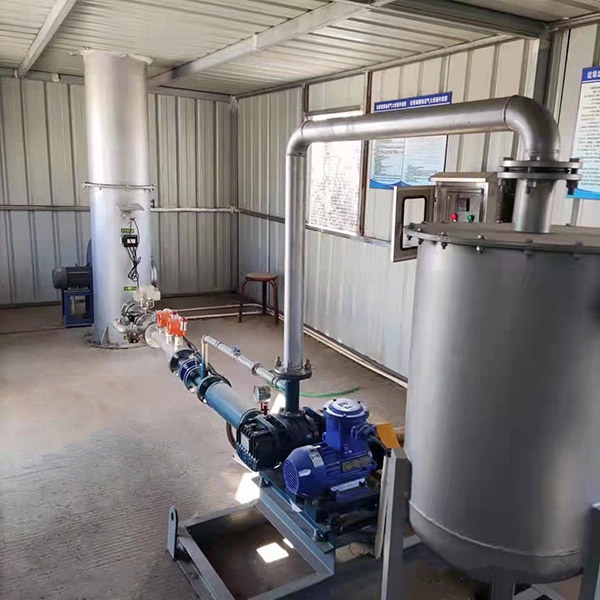

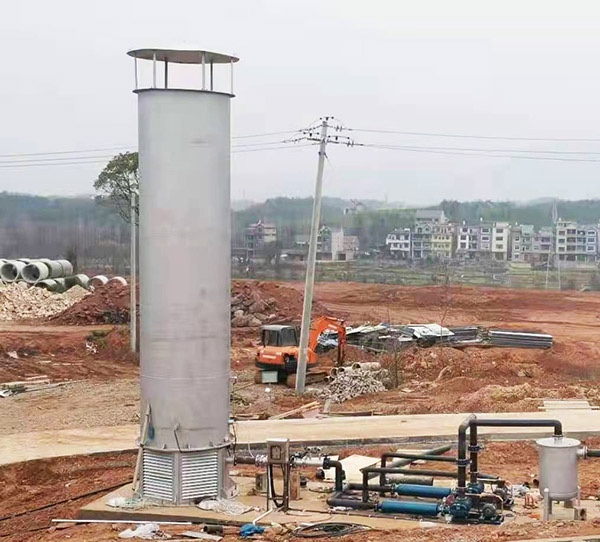

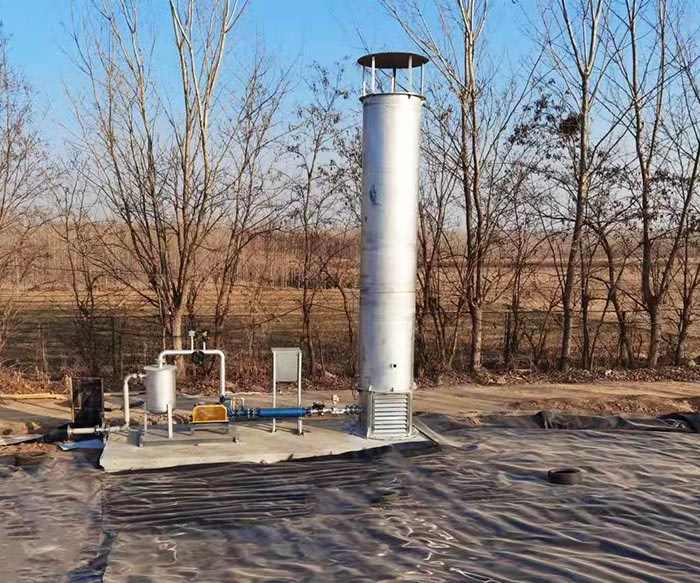

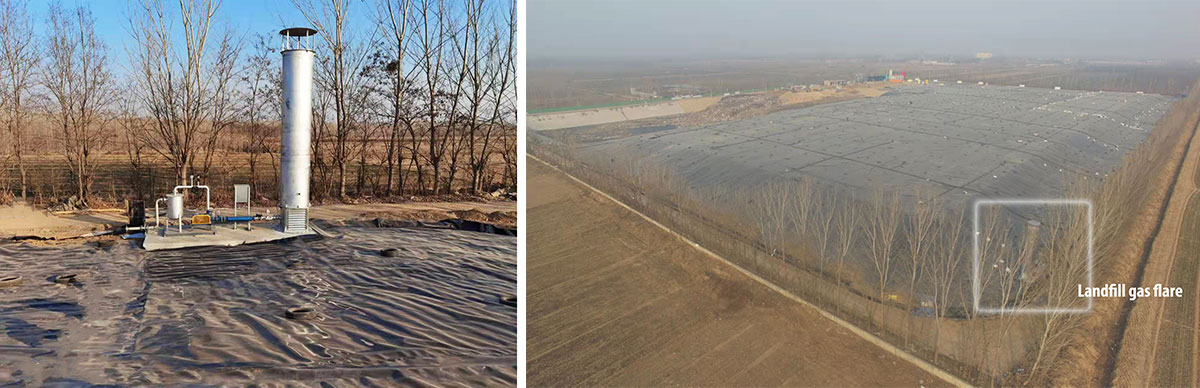

ALONG biogas flare is in cylindrical tower structure,consists of tower body, burner, ignition system, control system and valve&pipe assembly. The top of flare body is equipped with a wind-proof cap. It has the following characteristics:
Utilization gas: Biogas, Landfill gas, LPG and so on
Capacity 20~5000 m³/hr available, load adjustment ratio up to 1:10;Main material is stainless steel 304, while the burner adopts stainless steel 310S (06Cr25Ni20) material;flare shell is stainless steel, the middle layer is insulation material, while the liner is special refractory of high temp resistance; The temperature of flare appearance does not exceed 60 degrees Celsius when in full-loading condition;The combustion of biogas occurs in the enclosure and no flame at top of flare;flare can be operated manually or automatically or both combined with function of remote controlling available;Burner and flame arrester can prevent the occurrence of tempering;The solenoid valve would be open or closed automatically when the pressure signal from pressure switch is received by system;Biogas supply would be cut off automatically when flame signal can not be detected by the flame detecting system;Automatic electronic ignition.Constant lighting settled,which is always on working to ensure the success rate of ignition and would be closed only when the pressure is too low.Combustion efficiency 99%, Noise level 60 dB.
Parameter Table for Election
|
Model |
Capacity (m3/h) |
Max. (m3/h) |
Height (mm) |
Dia.meter (mm) |
Connection size |
Main material |
|
AF100 |
100 |
150 |
3870 |
300 |
DN60 |
Stainless steel |
|
AF200 |
200 |
250 |
4270 |
500 |
DN80 |
Stainless steel |
|
AF300 |
300 |
400 |
5020 |
720 |
DN100 |
Stainless steel |
|
AF500 |
500 |
600 |
6310 |
950 |
DN125 |
Stainless steel |
|
AF600 |
600 |
750 |
6520 |
1100 |
DN150 |
Stainless steel |
|
AF800 |
800 |
950 |
7200 |
1260 |
DN150 |
Stainless steel |
|
AF1000 |
1000 |
1150 |
7750 |
1300 |
DN200 |
Stainless steel |
|
AF1200 |
1200 |
1400 |
9250 |
1500 |
DN200 |
Stainless steel |
|
AF1500 |
1500 |
1800 |
9500 |
1800 |
DN250 |
Stainless steel |
|
AF2000 |
2000 |
2200 |
11500 |
2000 |
DN300 |
Stainless steel |
|
AF2500 |
2500 |
2600 |
12500 |
2200 |
DN350 |
Stainless steel |
|
AF3000 |
3000 |
3200 |
12800 |
2400 |
DN350 |
Stainless steel |
|
AF4000 |
4000 |
4200 |
13200 |
2500 |
DN350 |
Stainless steel |
|
AF5000 |
5000 |
5200 |
13200 |
2500 |
DN350 |
Stainless steel |
